Geology of Palo Pinto County, Texas

The source geological map used is "Geologic Atlas of Texas, Abilene Sheet" - Bureau of Economic Geology, 1987.  The map was digitally distorted in some spots to align the roads with the more accurate modern map BUT there is still some distortions and alignment is not perfect.  Colors used here are arbitrary.

Geologic Atlas of Texas - Abilene  sheet descriptive booklet (PDF file - 517k)

[The best way to print the maps is to save each large image to your computer and then open with the default picture viewer.  This should allow you to print each image and fill a standard 8x11 page without any clipping as may occur if printing from your browser.]

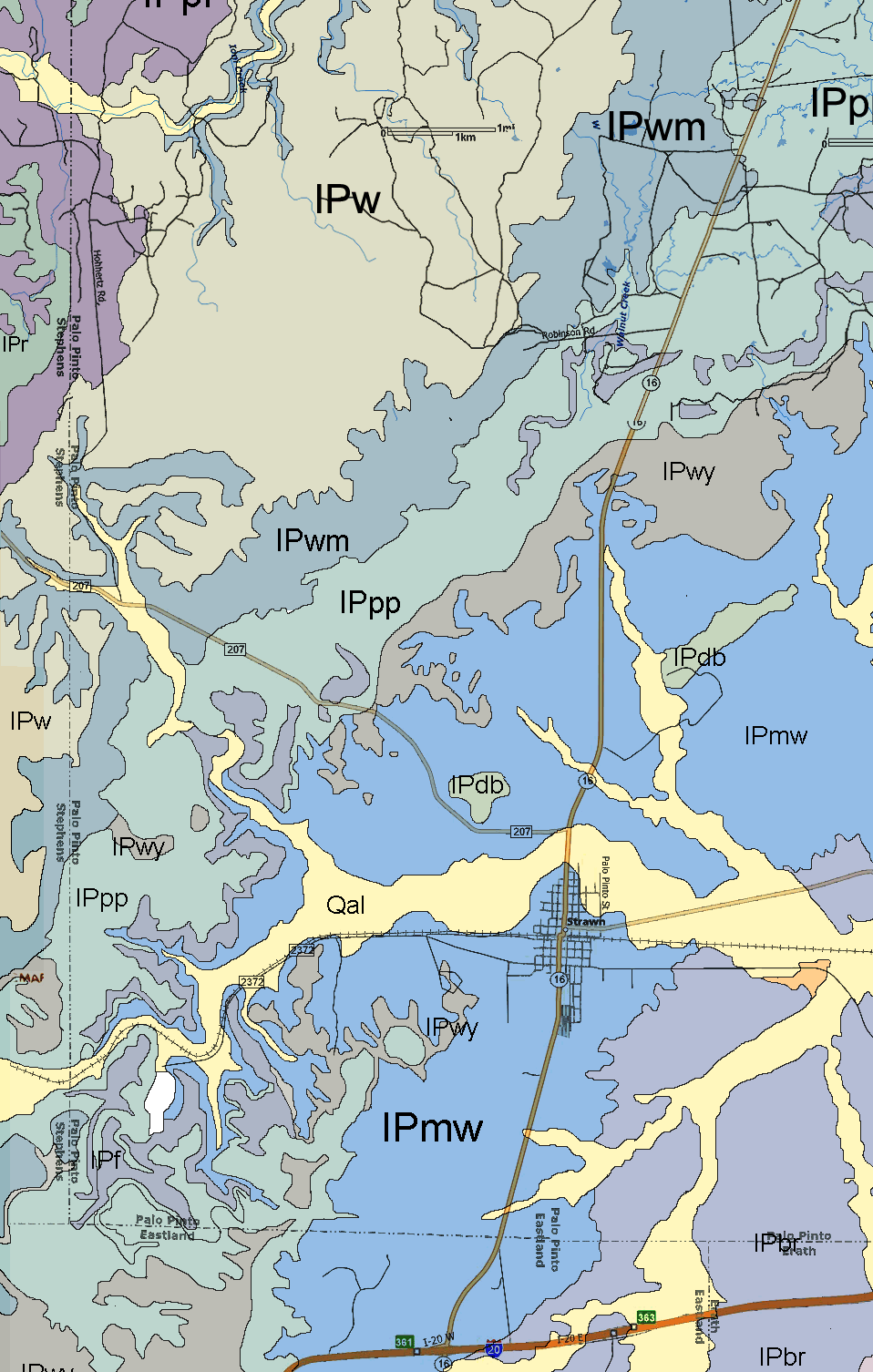

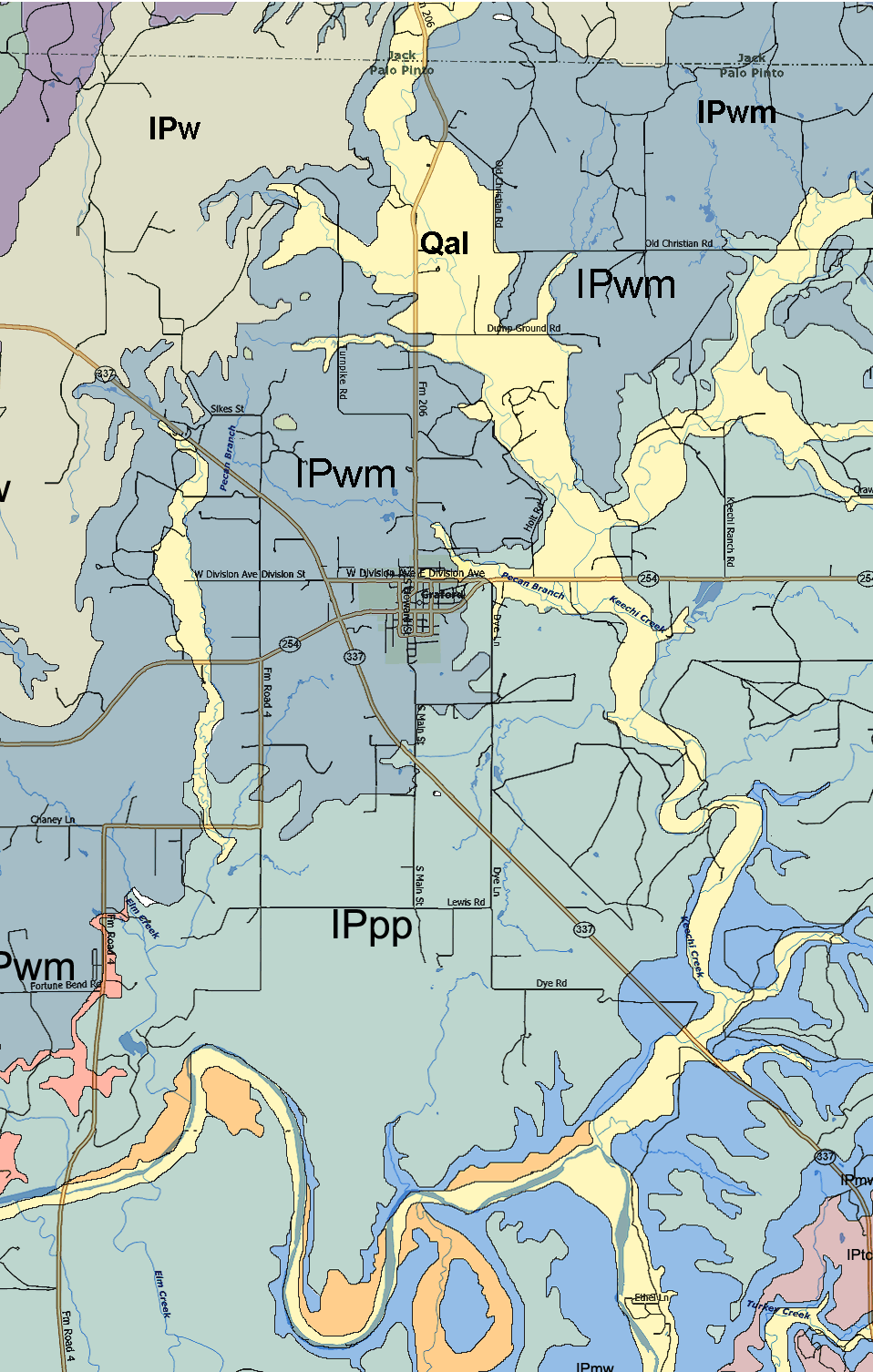

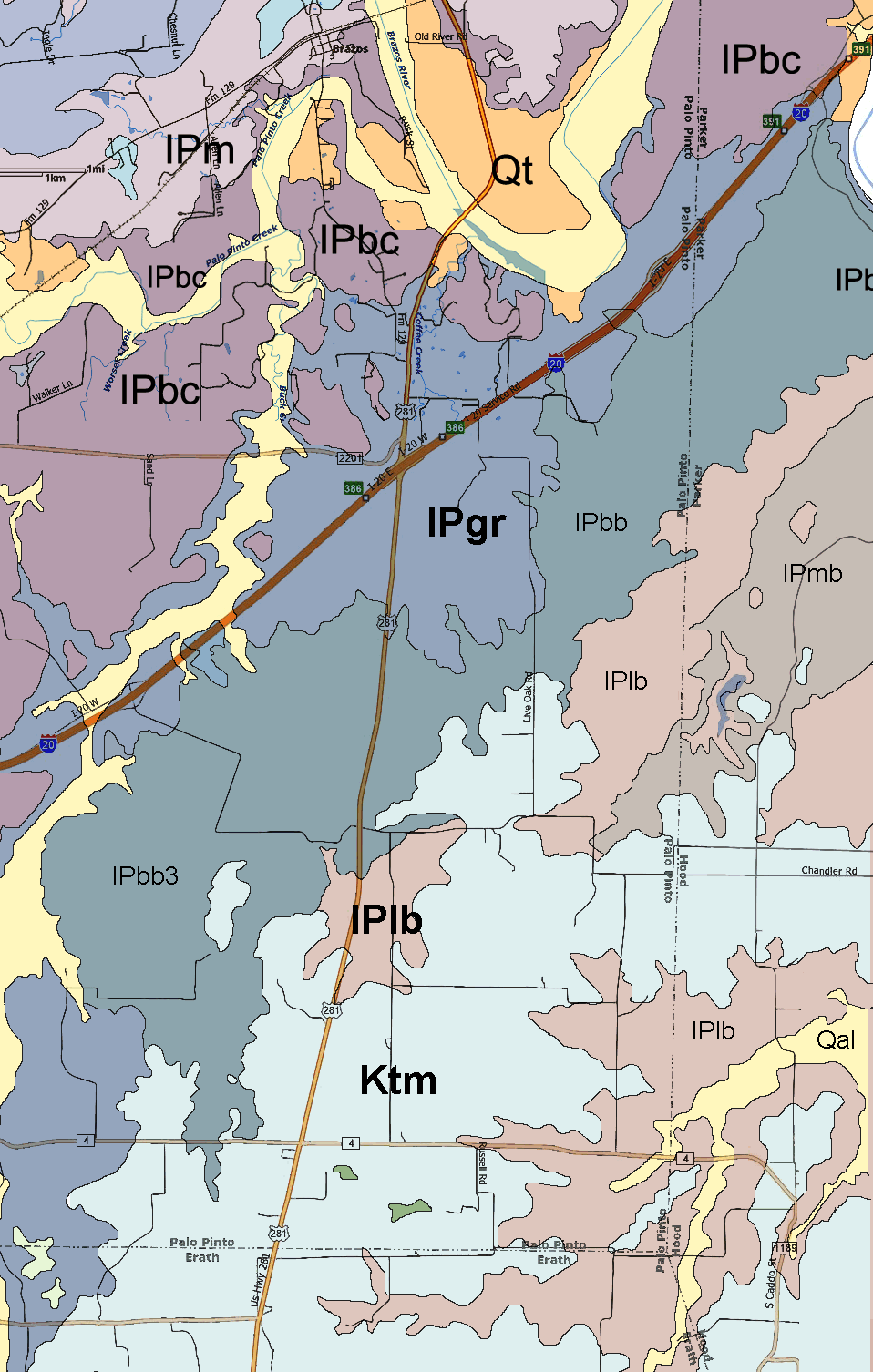

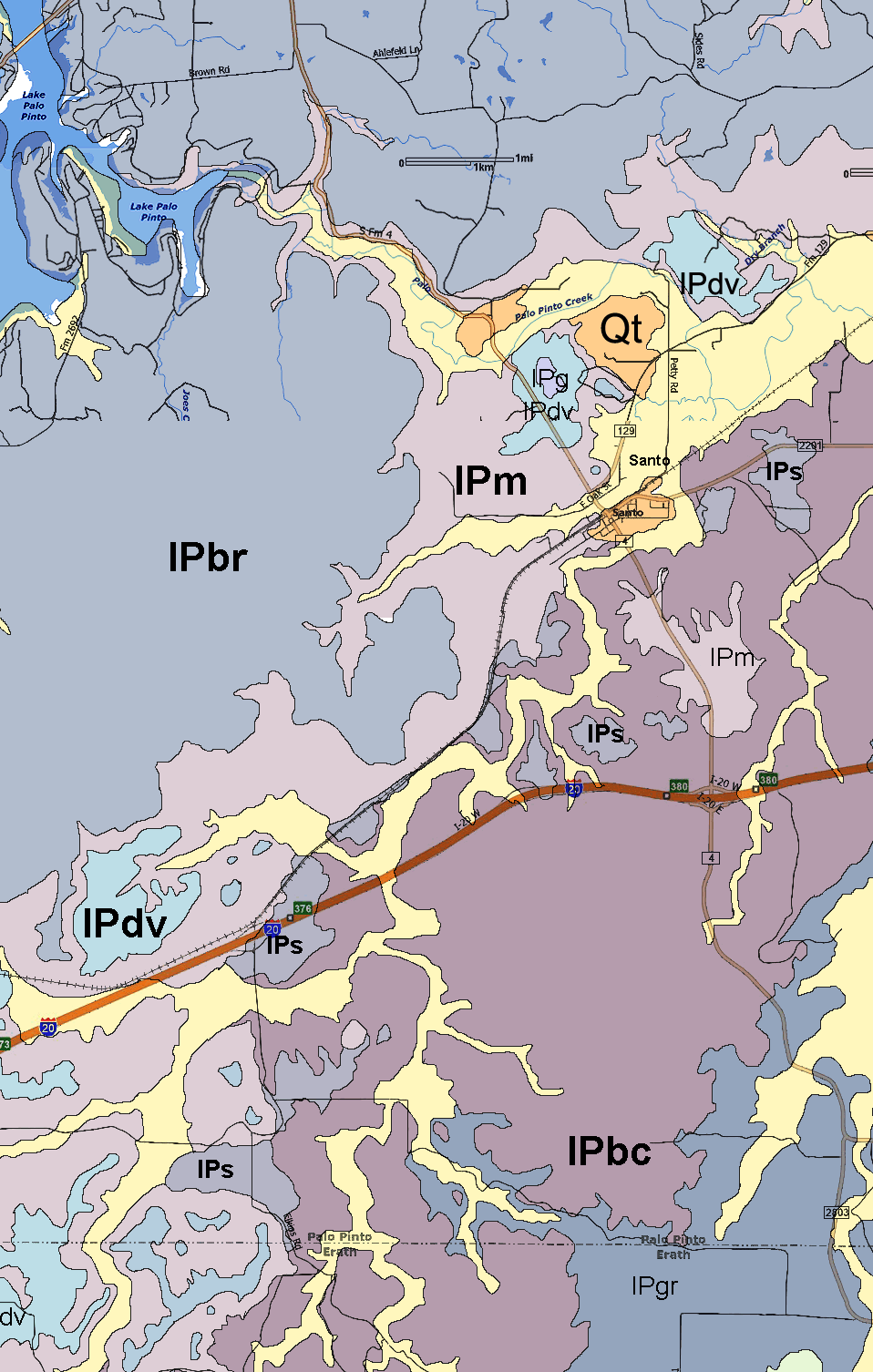

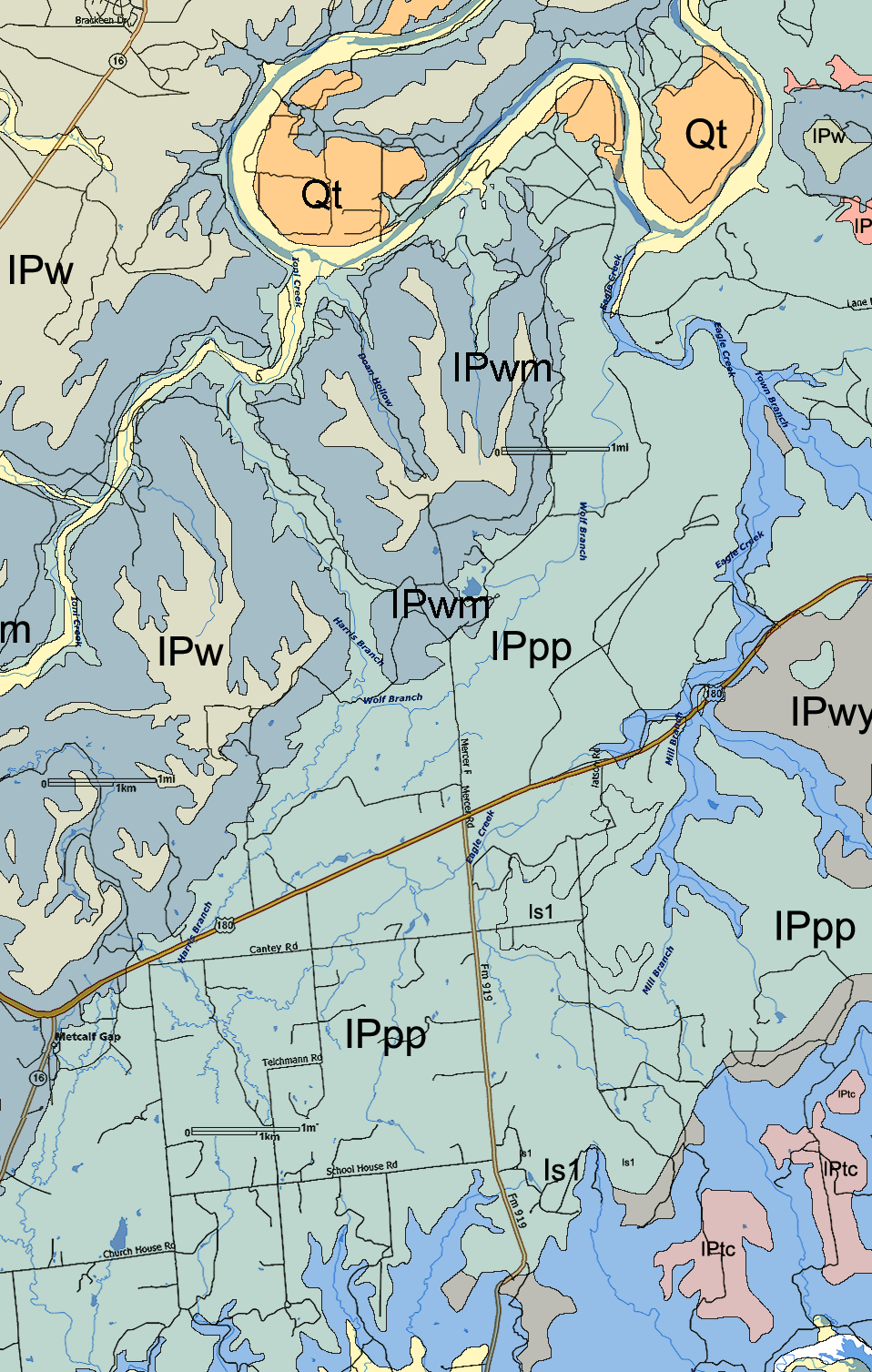

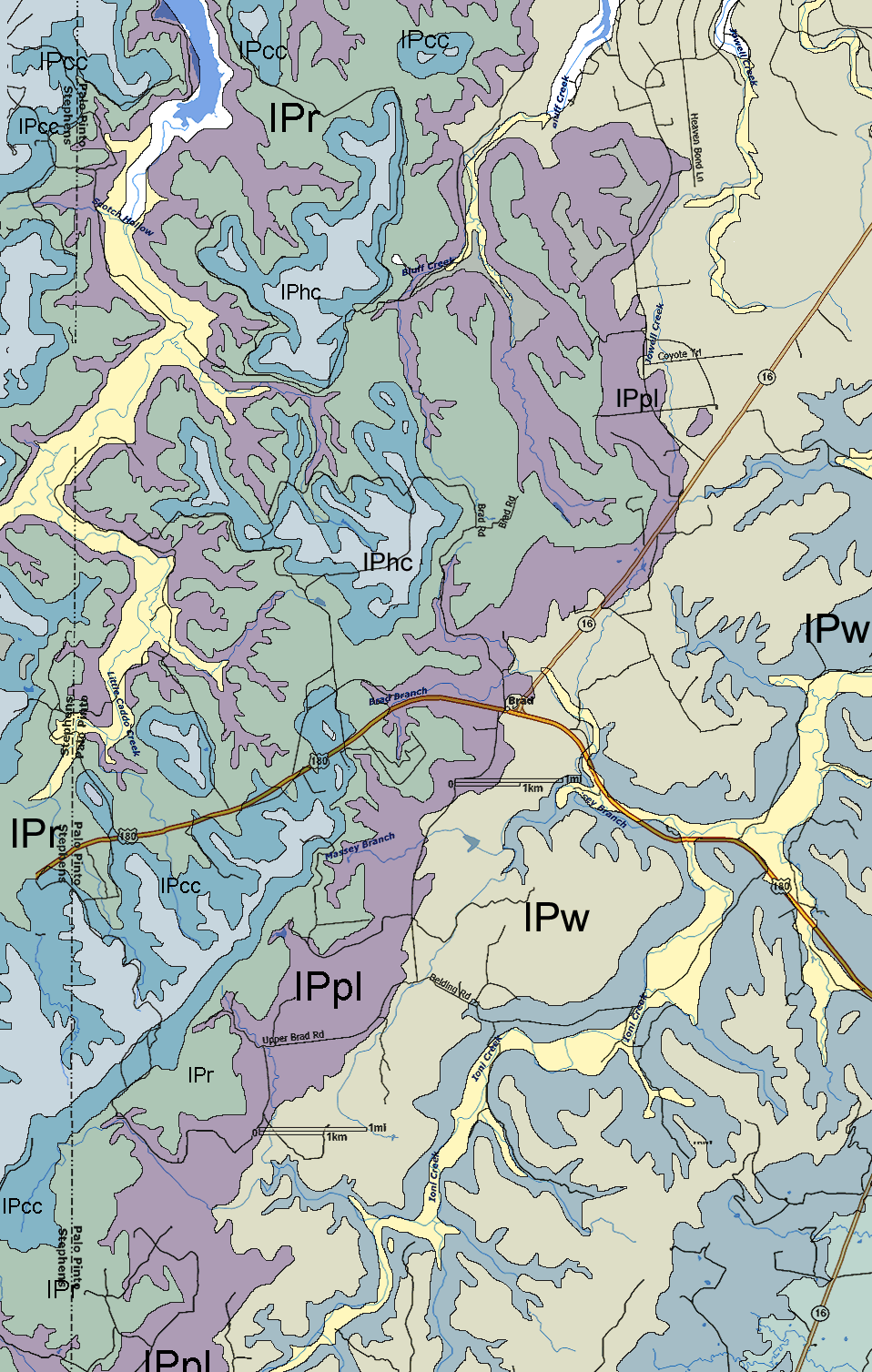

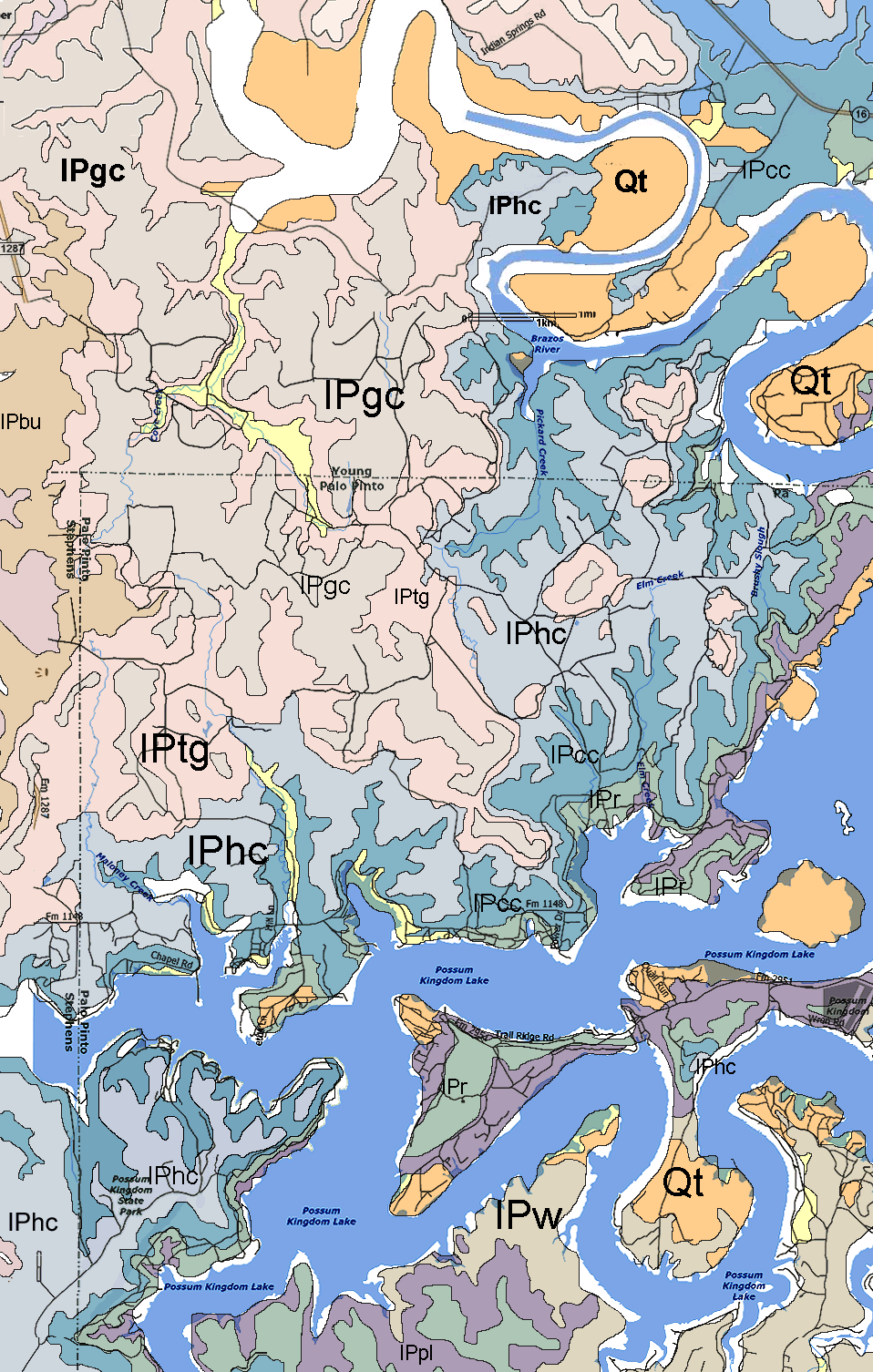

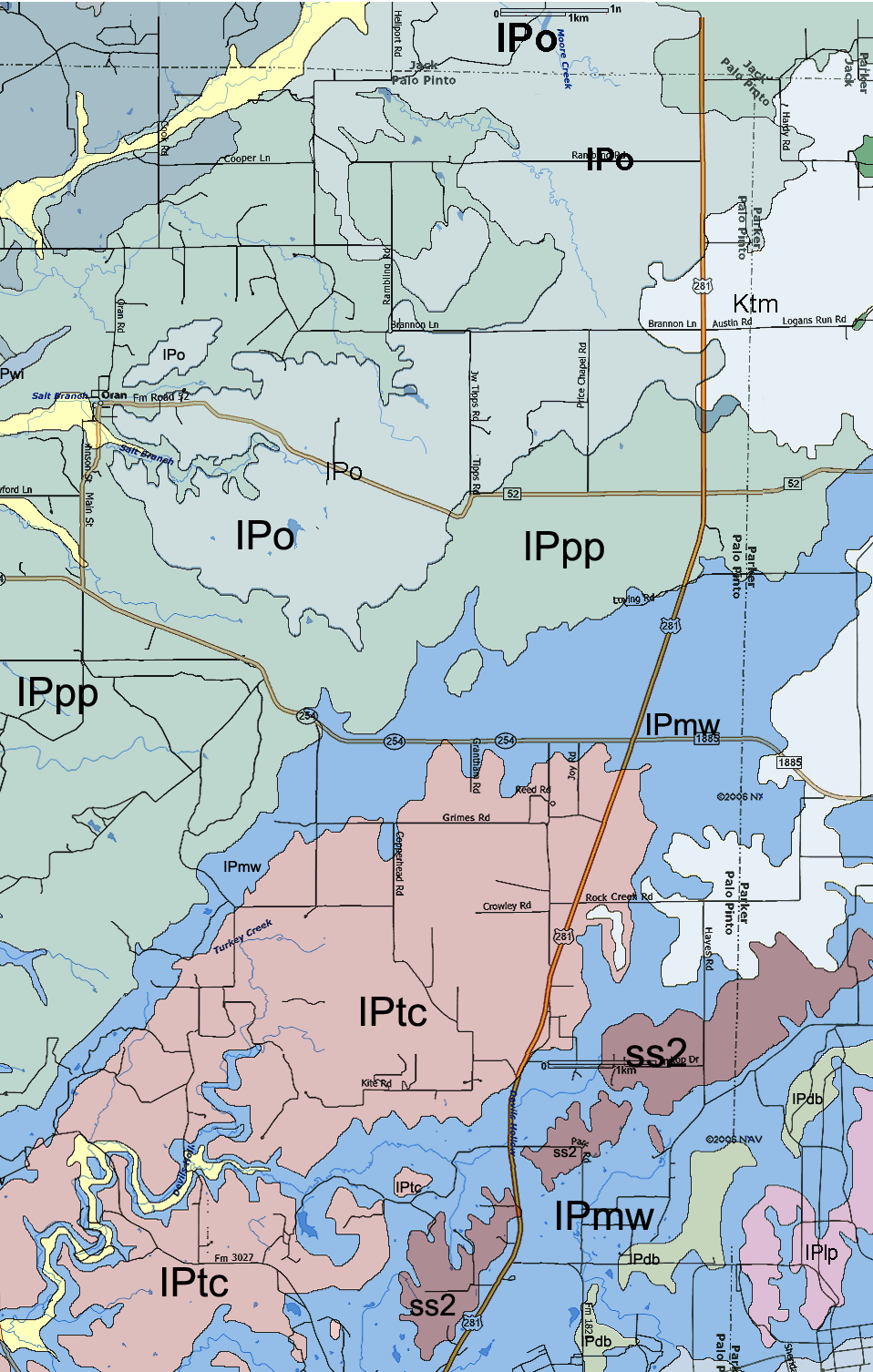

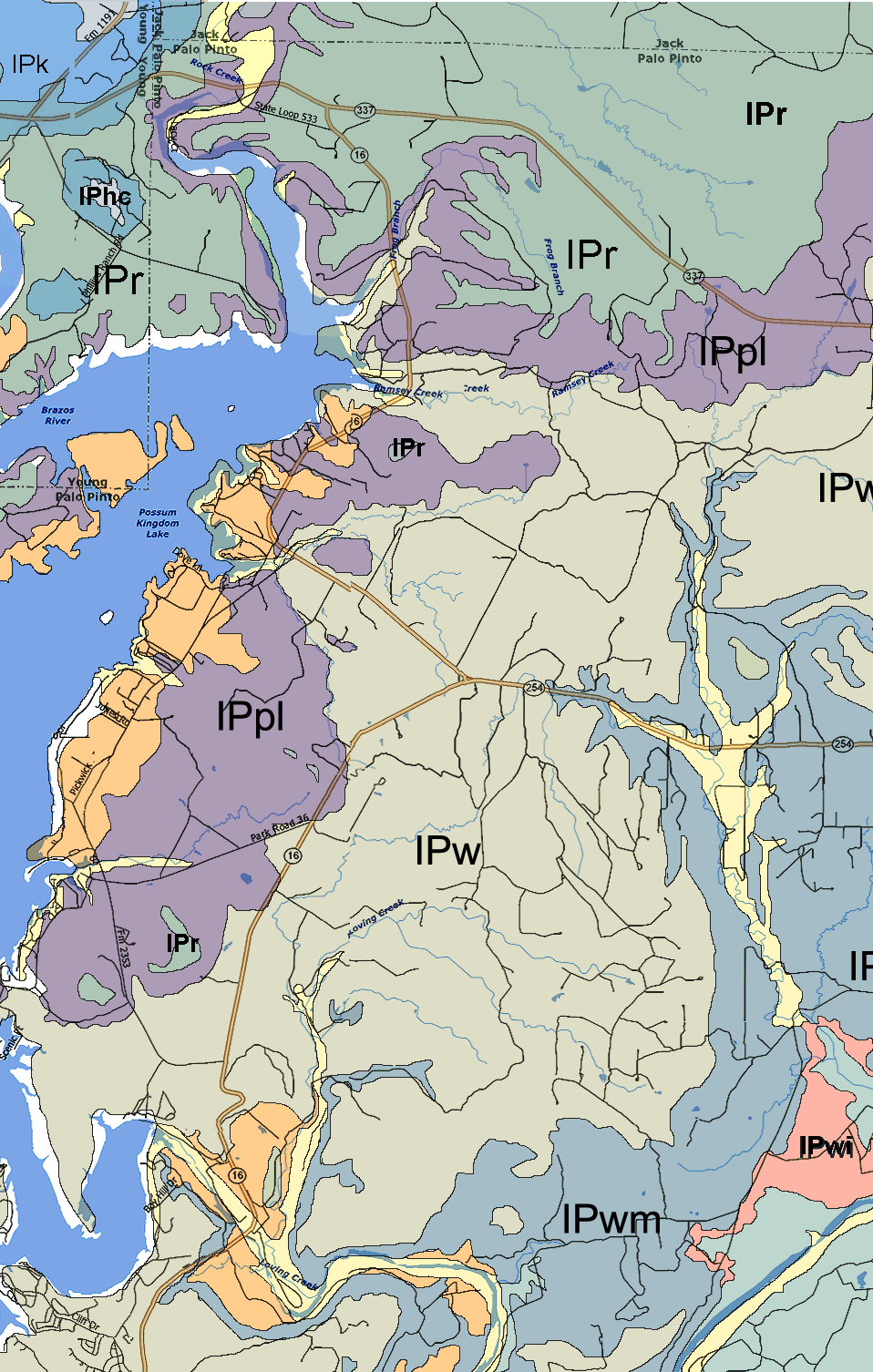

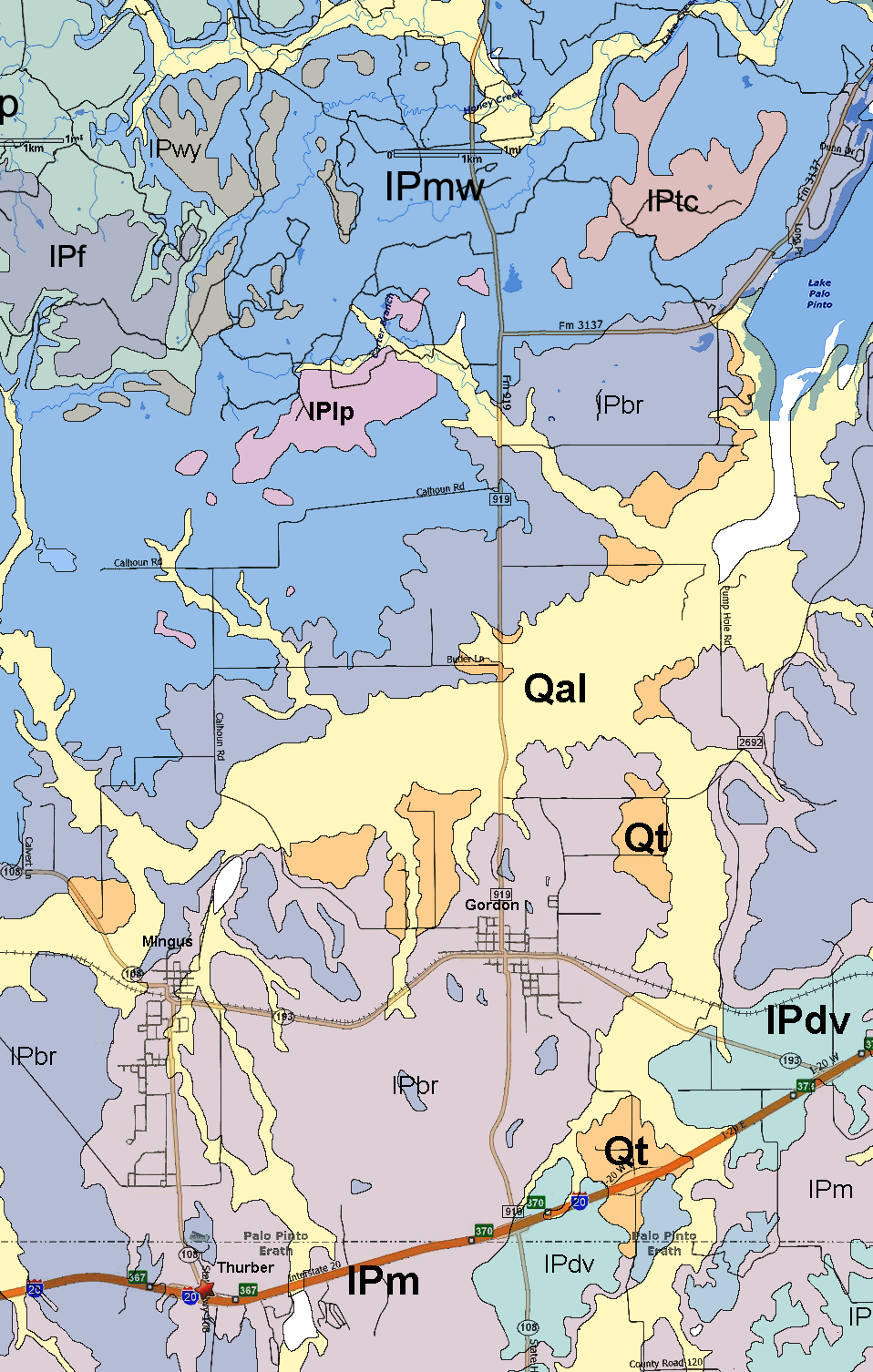

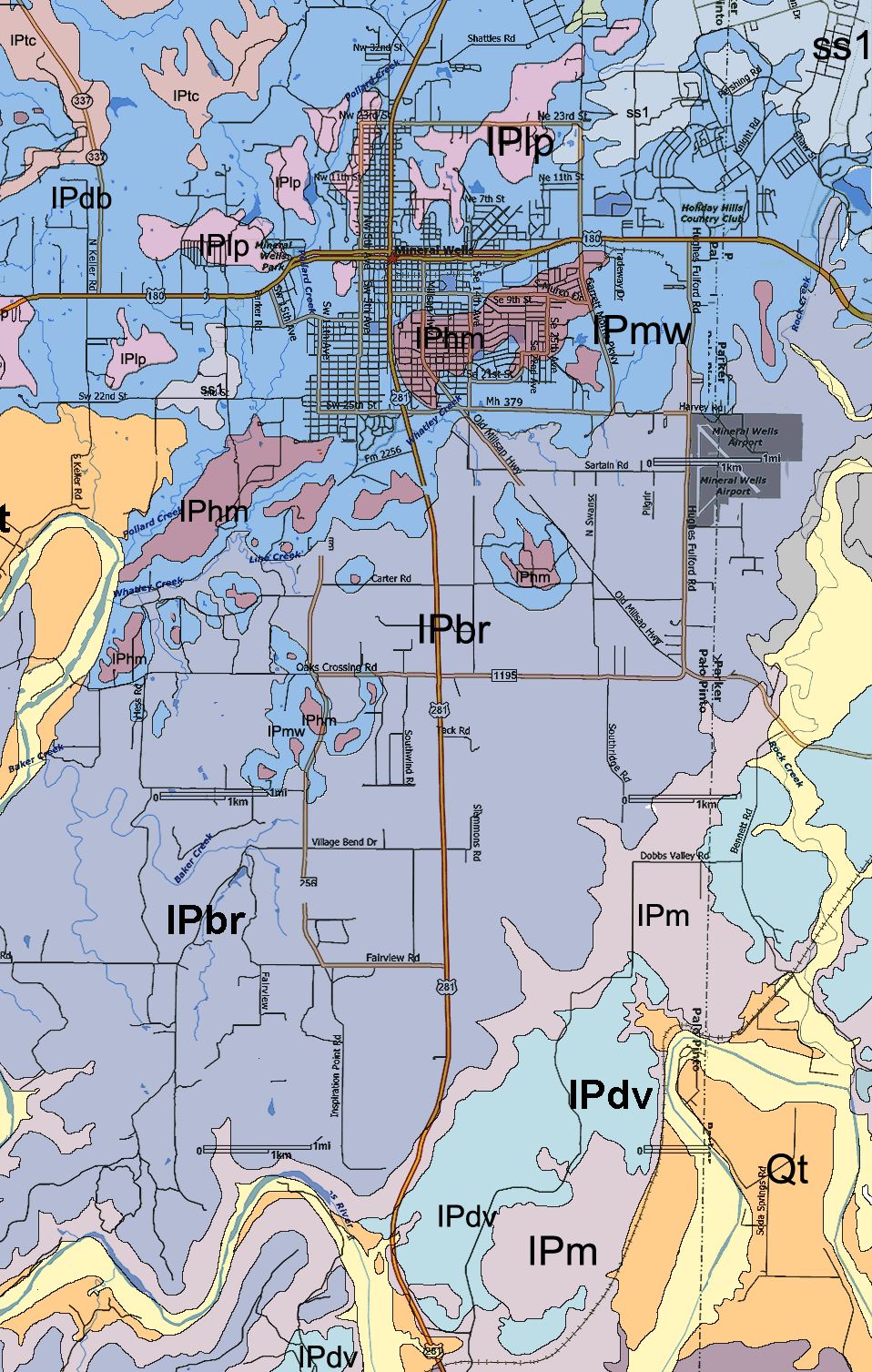

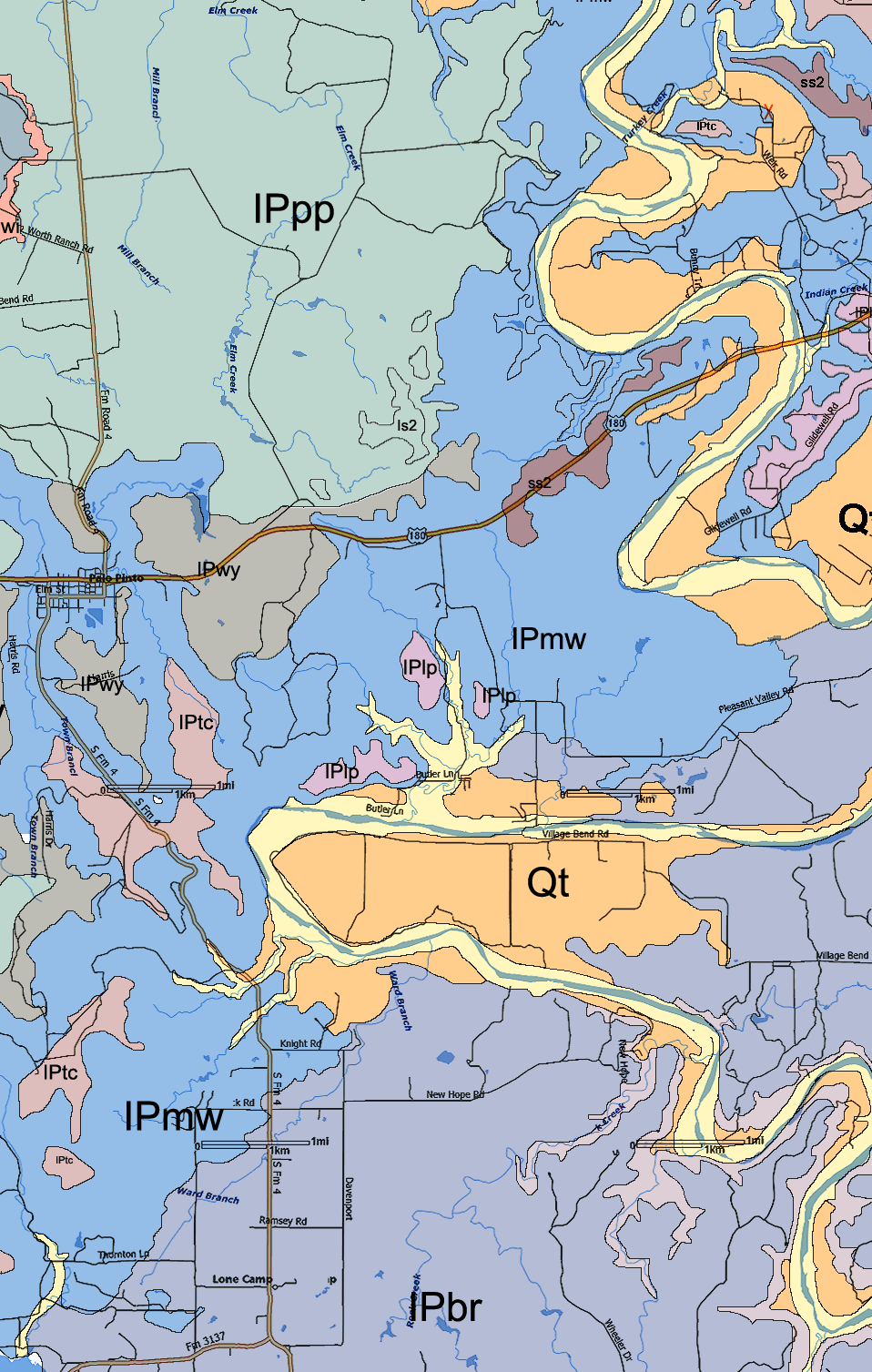

Palo Pinto county geological map in 12 parts:


Geological formations:
(Greatly simplified)
Period: Formation: members and lenses:
Holocene Period: Qal - Quaternary alluvium
Pleistocene Period: Qt - Quaternary terrace deposits
Cretaceous Period: Ktm - Twin mountains
Pennsylvanian
Period:		 IPtg - Graham and
Thrifty Formations
IPbu - Bunger limestone
IPgc - Gonzales Creek shale
IPhc - Home Creek (limestone and shale)
IPcc - Colony Creek shale  (shale and sandstone)
IPr - Ranger Limestone (limestone and shale)
IPpl - Placid shale (shale, sandstone and limestone)
IPw - Winchell limestone (limestone and shale)
IPwm - Wolf Mountain  (shale, sandstone and limestone)
IPpp - Palo Pinto IPwi - Wiles limestone
IPo - Oran sandstone
(limestones 1-6)
IPf - Fambro sandstone
IPwy - Wynn limestone
IPmw - Mineral Wells Keechi Creek shale IPtc - Turkey Creek limestone
Salesville shale IPdb - Dog Bend limestone
East Mountain shale IPlp - Lake Pinto sandstone
IPvb - Village Bend limestone
IPc - Capps limestone
ss1 - sandstone
IPhm - Hog Mountain sandstone
IPbr - Brazos River (expanded)
IPm - Mingus (Thurber coal)
IPg - Goen limestone
IPdv - Dobbs Valley sandstone
IPs - Santo limestone
IPgr - Grindstone Creek IPbc - Buck Creek Sandstone
IPbb1-3 - Brannon Bridge Limestones 1-3
IPlb - Lazy Bend IPmb - Meek Bend Limestone
(limestone)
