Graham Formation



The Geology of Texas - Volume 1 - Stratigraphy

Graham Formation

" The Graham Formation at the base of the Cisco group is best developed in the Brazos River valley, where it has been subdivided into several members as follows: Gonzales limestone shale and sandstone; Bunger limestone; Necessity shale and sandstone; Gunsight limestone; and Wayland shale. Formerly the Jacksboro limestone and Finis shale of Jack County were placed in this Strata but they are now recognized as part of the Home Creek limestone of the Caddo Creek Strata. To the southwest the Strata thins, the lower members, according to Plummer and Moore, being lost by overlap. The members recognized in the Colorado River valley are the Bluff Creek shale, Gunsight limestone, and Wayland shale.

The uppermost member, the Wayland shale, is notably fossiliferous.  An erosional unconformity is found at the top of the Strata by which the Wayland shale is cut out locally. Some geologists prefer making the division line between the Canyon and Cisco at this break in sedimentation—a position supported also by a break in the microfauna — thus placing the Graham Formation in the Canyon group (652, p. 139). The Strata is traced northward into Montague County (176, p. 63). The limestones thin northward and have largely disappeared where the Strata passes under the Cretaceous in Montague County (176, p. 63). A chert conglomerate is found in this Strata at its type locality and at several other localities.

A large ammonite fauna obtained from the Necessity shale at several localities includes Uddenites, Gastrioceras modestum, Schistoceras hyatti, Shumardites simondsi, and Gonioloboceras welleri (1234f).  Type locality: The type locality is at Graham in Young County; thickness, 160 feet in the Colorado River valley, and 350 or 450 feet in the Brazos River valley.  "

Graham Formation "members"
Colorado River Valley: Brazos River Valley:
Wayland Shale Wayland Shale
Gunsight limestone Gunsight limestone
Bluff Creek  shale South Bend Shale
Bunger limestone
Gonzales Creek shale
Jacksboro limestone
Finis shale

Geology:

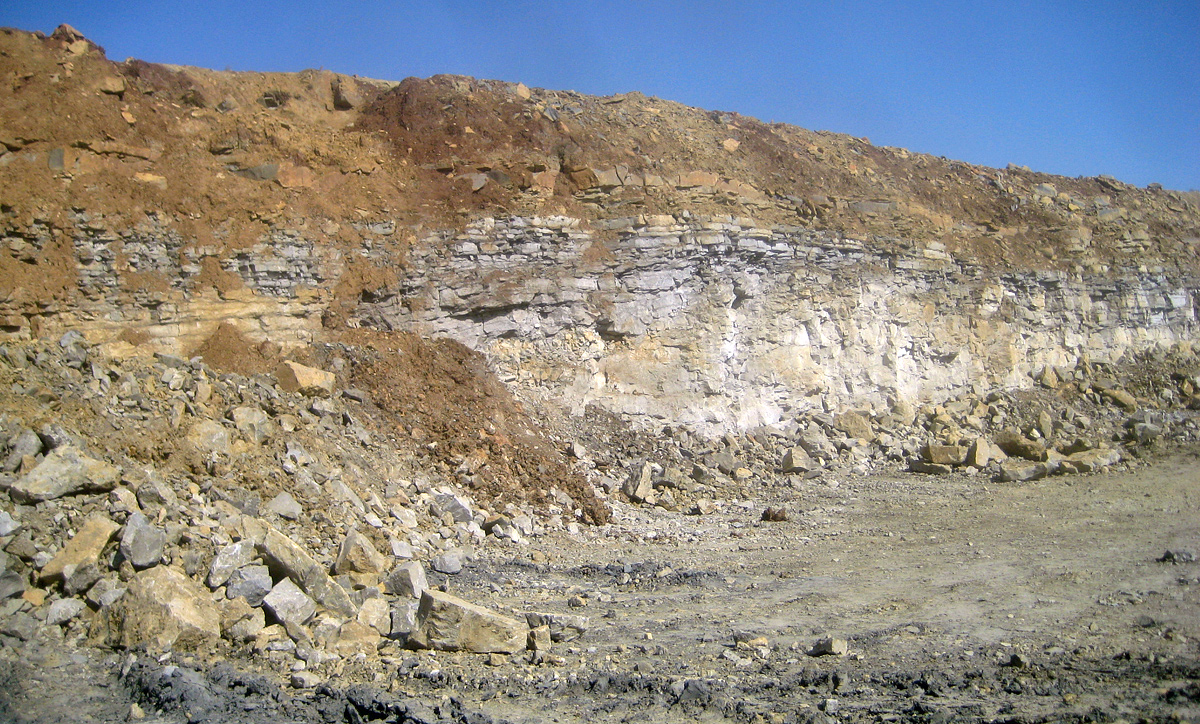

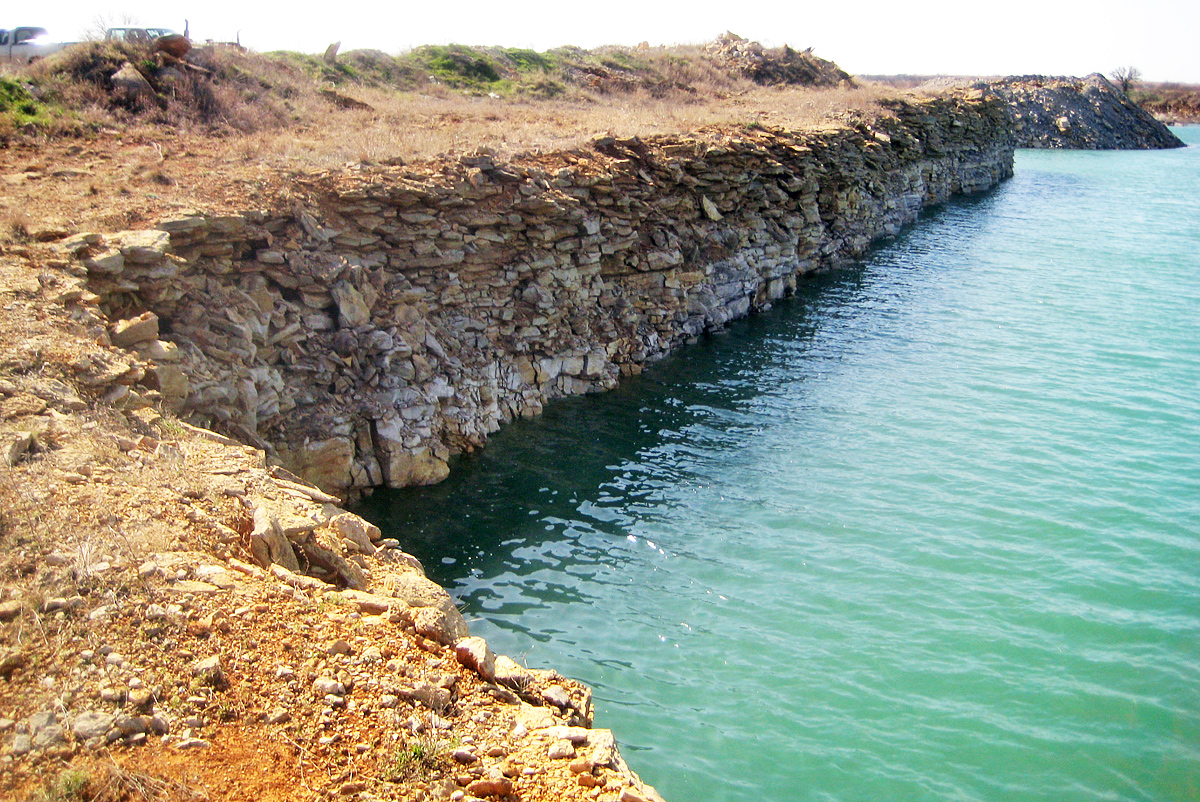

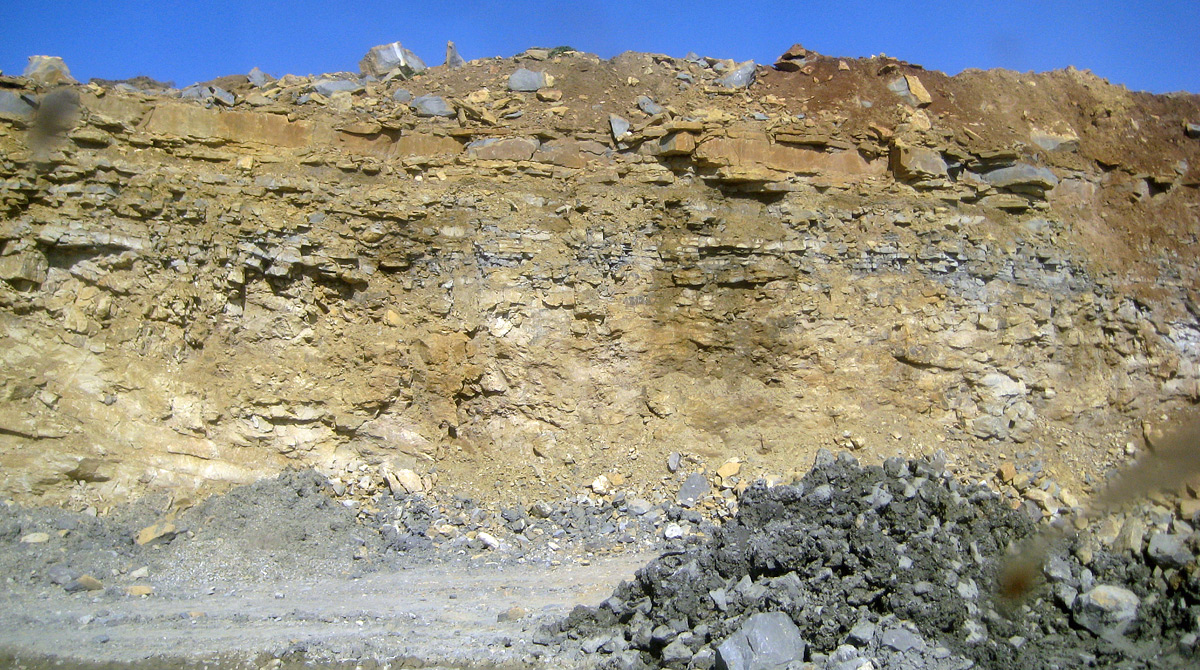

Jacksboro Limestone member
Jacksboro Limestone
Jacksboro Limestone
Jacksboro Limestone
Jacksboro Limestone
Jacksboro Limestone
Finis Shale member

Fossils:


The Finis shale is the basal member of the Graham Formation. The age is Late Pennsylvanian, 299-304 mya (closer to 304).  It has a rich and diverse fauna.
Fusulinids, echinoid plates,
various gastropod species

Strata: Graham (Finis shale?)
Period:  Pennsylvanian (c. 303-4 mya)
Loc:  Young Co., TX.  March 17, 2007.

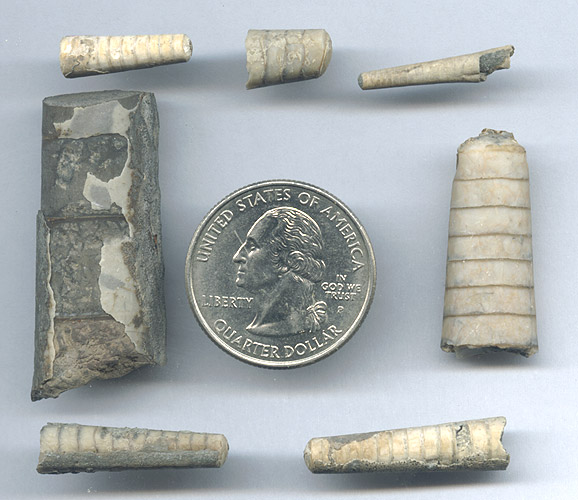

"Orthoconic" nautiloids

Strata: Graham  (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jacksboro, Jack Co., TX.
Crinoid stalks and segments

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.
Crinoid stalks and segments

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.
Conularid

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.

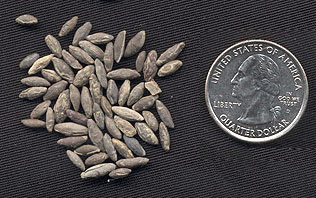

fusulinids

Strata: Graham, Finis shale?
Period:  Pennsylvanian (c. 303-4 mya)
Loc: Young Co., TX.  March 3, 2007.
Lophophyillidium proliferum corals

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.
Lophophyillidium sp.  corals

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.
Lophophyillidium spinosum corals

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.

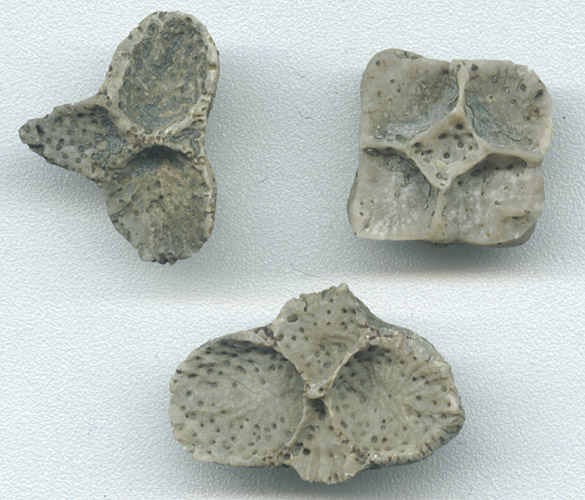

Paleacis sp.  corals

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jacksboro, Jack Co., TX.

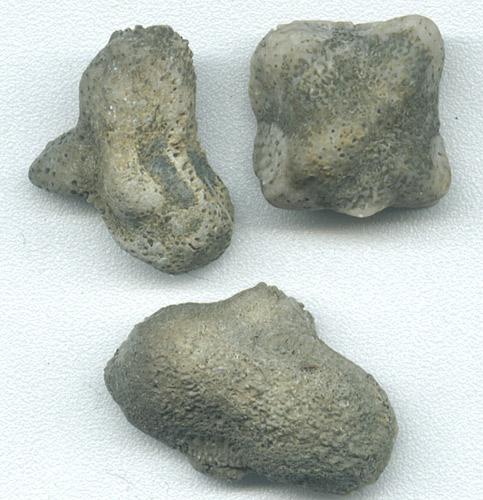

Paleacis sp.  corals

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jacksboro, Jack Co., TX.
bryozoans (colonies of bryozoa)

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  March 4, 2006.
Straparolus sp.
(smaller are Schizostoma?)

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.

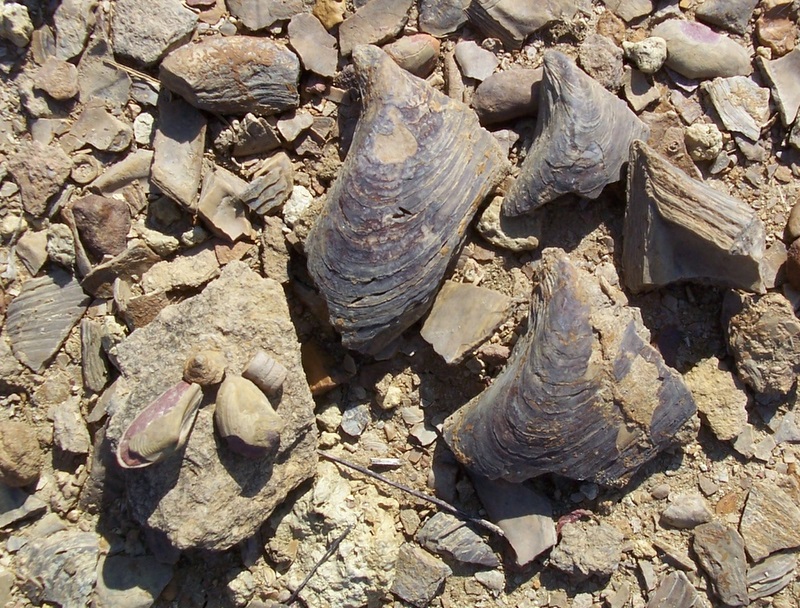

Myalina sp. clams  (found by Roz)

Strata: Graham (Jacksboro
limestone member?)
Period: Pennsylvanian
Loc: Jack Co., TX.  Nov. 13, 2007.
ammonoids (goniatites)

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.
Marginifera (3 smaller) brachiopods

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Nov. 19, 2005.

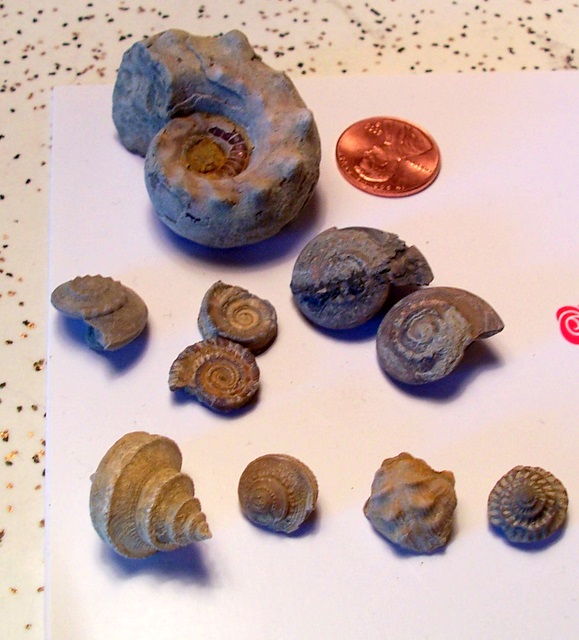

Roz Morgan finds from Jacksboro.

Strata: Graham (Finis shale)
Period: Pennsylvanian (c. 303-4 mya)
Loc: Jack Co., TX.  Jan. 28, 2007.

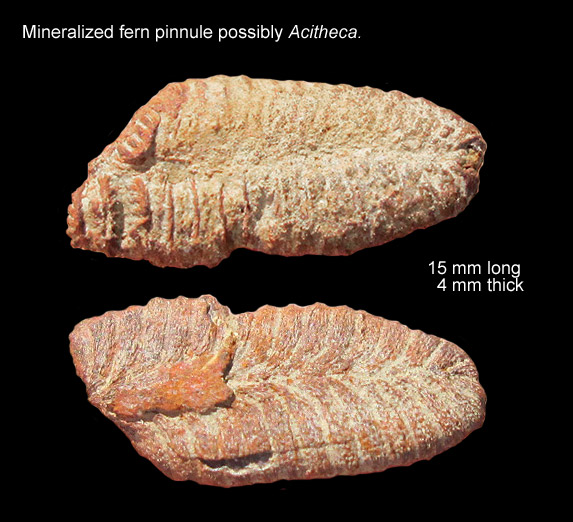

Acitheca sp. fern pinnules

Strata: Graham
Period:  Pennsylvanian  (c. 300 mya)
Location: Jack Co., TX. 9-27-14. Roz M.
